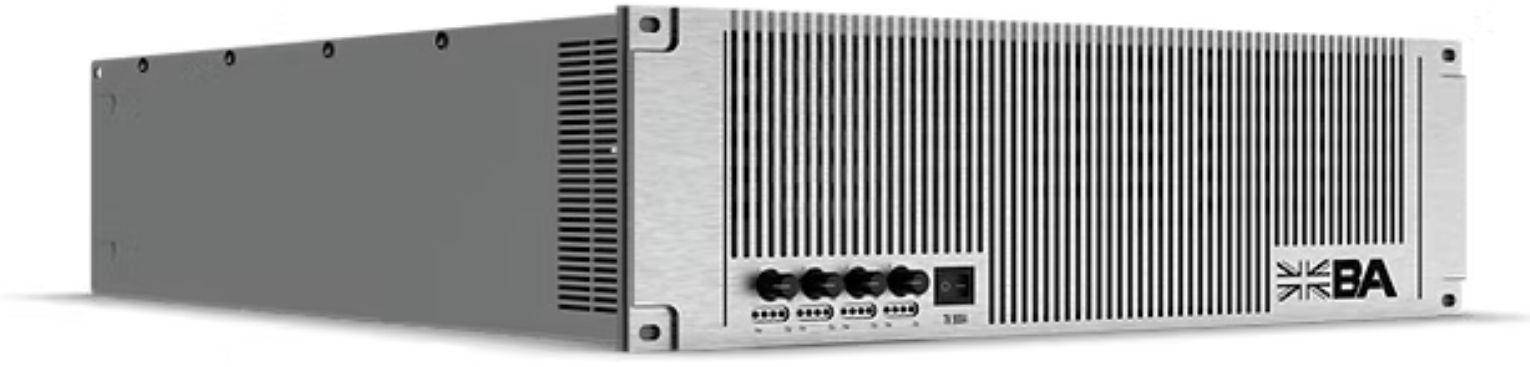

  3. British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier
▲
British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier image
British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier image
British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier image
British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier image
British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier image
▲
British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier zoom image
British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier zoom image

British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier

BRAND: British-Acoustics
|
MODEL: TK 9004
IN STOCK | CONDITION: New
WARRANTY: Official Manufacturer Warranty
COLOR
black British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier color image
Special Deal
Left in Stock!
Deal Claimed ( %)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 85000.00
Today's Price: ₹
Rs.85000 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • High power output with 4 × 2250W performance for professional sound systems
  • Class H amplifier design for improved efficiency and reduced heat
  • Stable performance even during long hours of operation
  • Built for concerts, DJ setups, and large sound installations
  • Strong and durable metal chassis for reliable use
  • Advanced protection against overload, short circuit, and overheating
  • Delivers clear, powerful, and distortion-free audio
IN THE BOX
Sales Package British-Acoustics TK 9004 4 X 2250W Class H, Audio Power Amplifier
General
BrandBritish-Acoustics
ModelTK 9004
Colorblack
OUTPUT POWER


• 4 Output Channels
• 1400W/ Ch @ 8?
• 2250W / Ch @ 4?
• 2400W / Ch @ 2.7?
• 2400W / Ch @ 2?
• 2800W / Ch @ 8? Bridged
• 3800W / Ch @ 4? Bridged
AMPLIFIER INPUTS

• 4 x Analogue Inputs
AMPLIFIER OUTPUT


• 4 Link Outputs
• 4 Power Outputs
CONNECTORS


• XLR Connectors for Signal Input and Link
Output
• Speak-on and Binding Post Connectors for
Channel Outputs
SYSTEM
SPECIFICATIONS


• Input CMRR > 60 dB
• Freq. resp.: 20Hz - 20kHz ±3dB
• THD : better than 0.08% (1 kHz)
• THD : better than 0.10% (FR)
• Nominal system gain: 36 dB
• Input Impedance — 20k?
• >800 Damping Factor, 1kHz, 8?
• Signal Limiters Present
• Protection Against Short Circuit & DC
Outputs Peak Limiting
• Mains In-rush Control presents
CONTROLS &
MONITORING


• LED Strip for Output Metering
• LED Indicators for Audio and Output Bridge
Indicators
• Toggle Switches for Sensitivy Selection,
Input Mode Selection, LPF & Ground
• Rotary Knobs for Channel Volume
POWER CONSUMPTION


• 7A Power Consumption, Nominal @
240V, 4 Ohms
• 13.5A Power Consumption, Nominal @
120V, 4 Ohms
• See Power Consumption & Thermal
Emission Chart for a detailed specification
OPERATING PARAMETERS


• Operating positions : To be used in a
rack-mount case with no front to back airflow
restriction
• Maximum permitted ambient temperature
(Ta max) 45° C (113° F)
• Minimum permitted ambient temperature
(Ta min): 0° C (32° F)
• 32 dB Fan Noise
Dimension
Dimension133 x 482 x 482 mm
Weight32.9 Kgs
Warranty
Warranty TypeOfficial Manufacturer Warranty
Warranty Period1 year
