| IN THE BOX | |
|---|---|

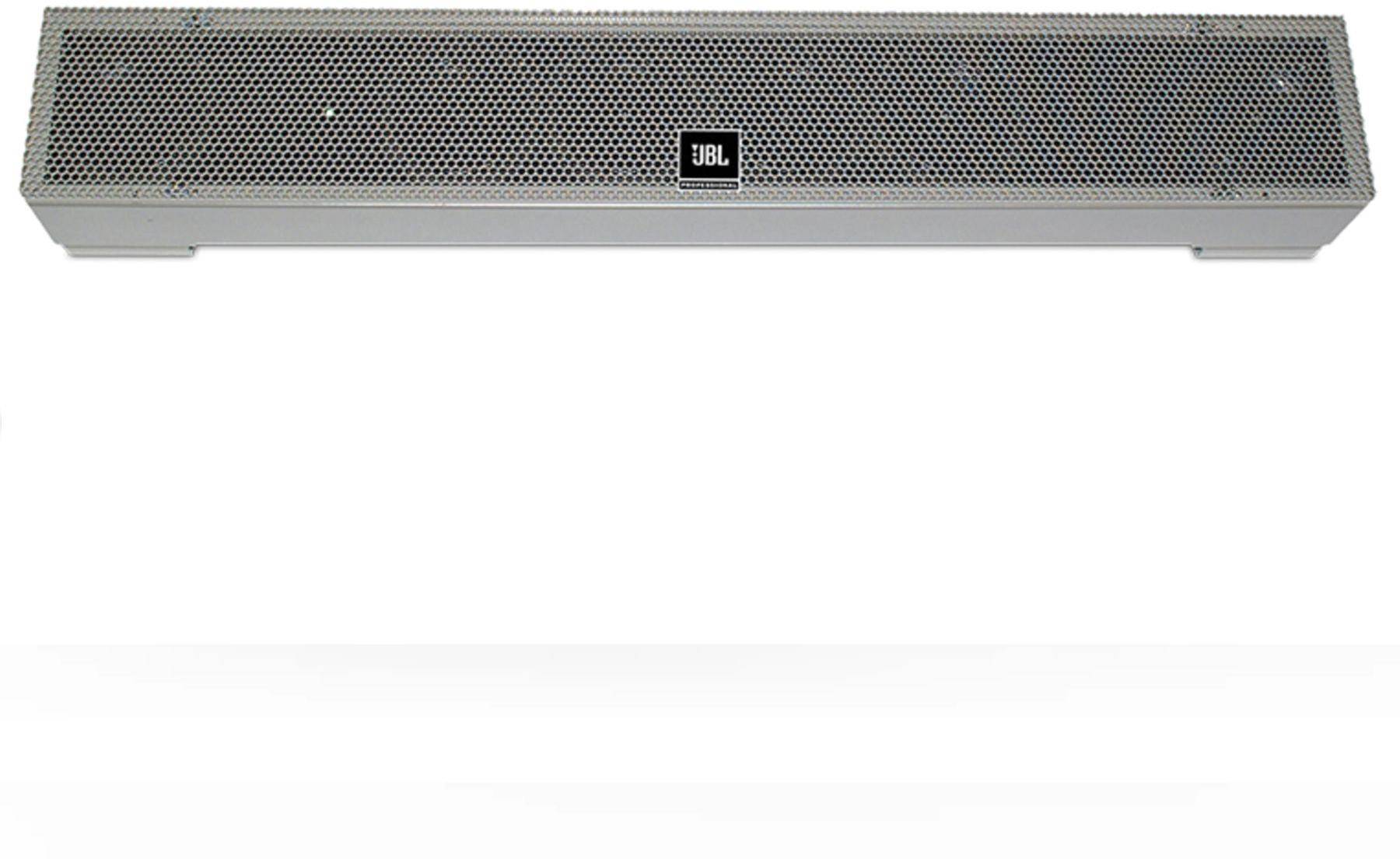

| Sales Package | JBL ADC-H90 Mark II Compact loudspeaker arrays for use in 70V / 100V distributed systems / EN 54-24 Compliant for Life Safety Applications |
| General | |
|---|---|
| Brand | JBL |
| Model | ADC-H90 Mark II |
| Color | white |
| Frequency Range | 260 - 11k Hz (+/-3dB) 150 - 14k Hz (-10 dB) |
| Sensitivity (1 W / 4 m) | 79 dBSPL |
| Maximum SPL (100 W / 4 m) | 99 dBSPL |
| Coverage Angle | Vertical: 130º, Horizontal: 40º, Steering Angle: Horizontal 0º, Typical Throw: 15 m |
| Rated Impedence (100 W tap) | 100 ? |
| Rated Impedence (50 W tap) | 200 ? |
| Rated Impedence (25 W tap) | 400 ? |
| Rated Noise Power | 100 Wrms(100 W tap) |
| Rated Noise Voltage | 100 Vrms |
| Control switches (Tap setting) | 100 W / 50 W / 25 W |
| Control switches (Highpass filter) | HPF active / Flat |
| Control switches (Correction EQ) | EQ active / Flat |
| Pilot tone detection (Indicator) | Green LED on front |
| Pilot tone detection (Frequency range) | 20k - 23k Hz |
| Pilot tone detection (Minimum level) | 6 Vrms |
| Mounting Points | 4 x M5 left and 4 x M5 right |
| Drivers | 6 x 4” full range |
| Transformer Taps | 100 W, 50 W, 25 W (100v only) |
Maximum SPL (1m) | 92 dBSPL (100 W tap / HPF flat / EQ flat) 89 dBSPL (100 W tap / HPF active / EQ active) |
| Dimension | |
|---|---|
| Dimension | 134 x 865 x 92 mm |
| Weight | 10 kg |
| Warranty | |
|---|---|
| Warranty Type | Official Manufacturer Warranty |
| Warranty Period | 1 year |
