IN THE BOX | |
---|---|

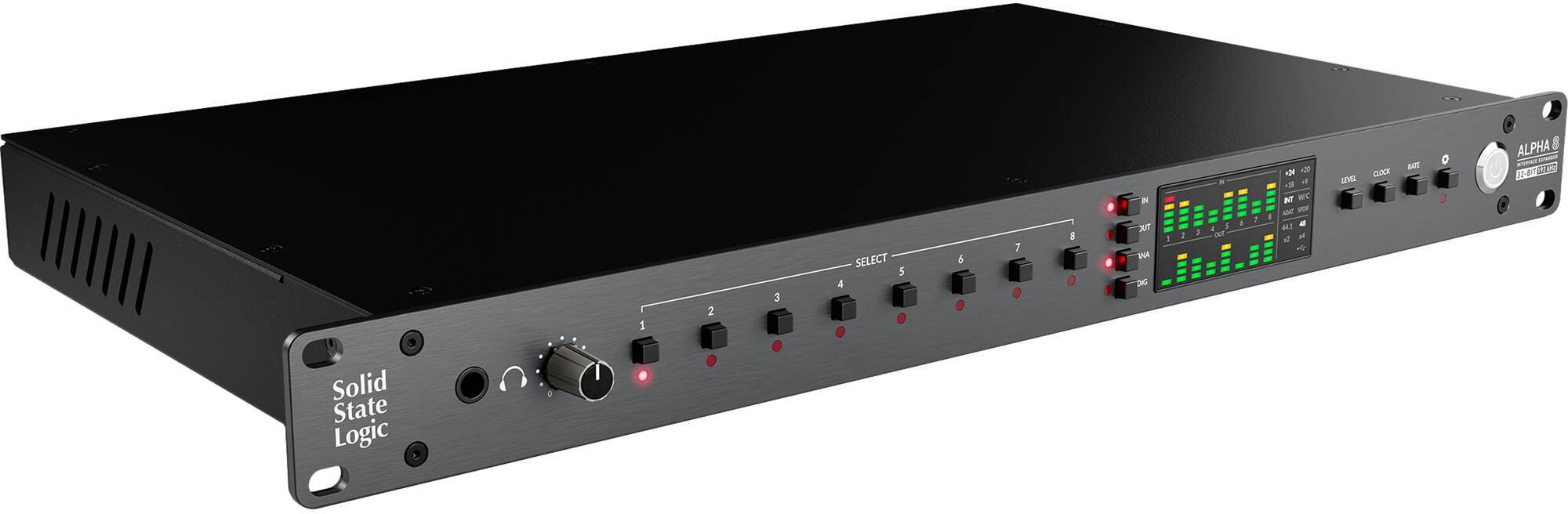

Sales Package | Solid State Logic ALPHA 8 AD/DA Converter/Expander and USB-C Audio Interface USB-C to USB-C Cable USB-C to USB-A Adapter IEC Power Cable |
General | |
---|---|
Brand | Solid-State-Logic |
Model | ALPHA 8 AD |
Color | black |
Form Factor | Rackmount |
Converter Type | AD/DA Converter |
Number of Channels | 8x A/D 8x D/A |
Maximum Sampling Rate | 192 kHz / 32-Bit |
Analog Audio I/O | 8x 1/4" TRS Unbalanced Line Input 8x 1/4" TRS Balanced Line Output 1x 1/4" TRS Headphone Output |
Digital Audio I/O | 2x TOSLINK Optical ADAT / S/PDIF Input 2x TOSLINK Optical ADAT / S/PDIF Output 1x BNC Coaxial S/PDIF Input 1x BNC Coaxial S/PDIF Output |
Host Connection | 1x USB-C |
Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output |
Maximum Input Level | Line Inputs: +24 dBu |
Maximum Output Level | Line Outputs: +24 dBu Headphone Outputs: +18 dBu (High Impedance Mode) +24 dBu (Balanced Line Output Mode) |
Impedance | Headphone Outputs: < 1 Ohm |
Dynamic Range | Line Inputs: 120 dB (A-Weighted) Headphone Outputs: 120 dB Line Outputs: 123 dB (A-Weighted) |
THD+N | Line Inputs: -110 dB Line Outputs: -108 dB Headphone Outputs: 120 dB |
Crosstalk | Line Inputs: -140 dB Line Outputs: -140 dB |
Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
Bit Depths | 32-Bit |
OS Compatibility | macOS 13 or Later / Windows 10 or Later |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Dimension | |
---|---|
Dimension | |
Weight |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
