IN THE BOX | |
---|---|

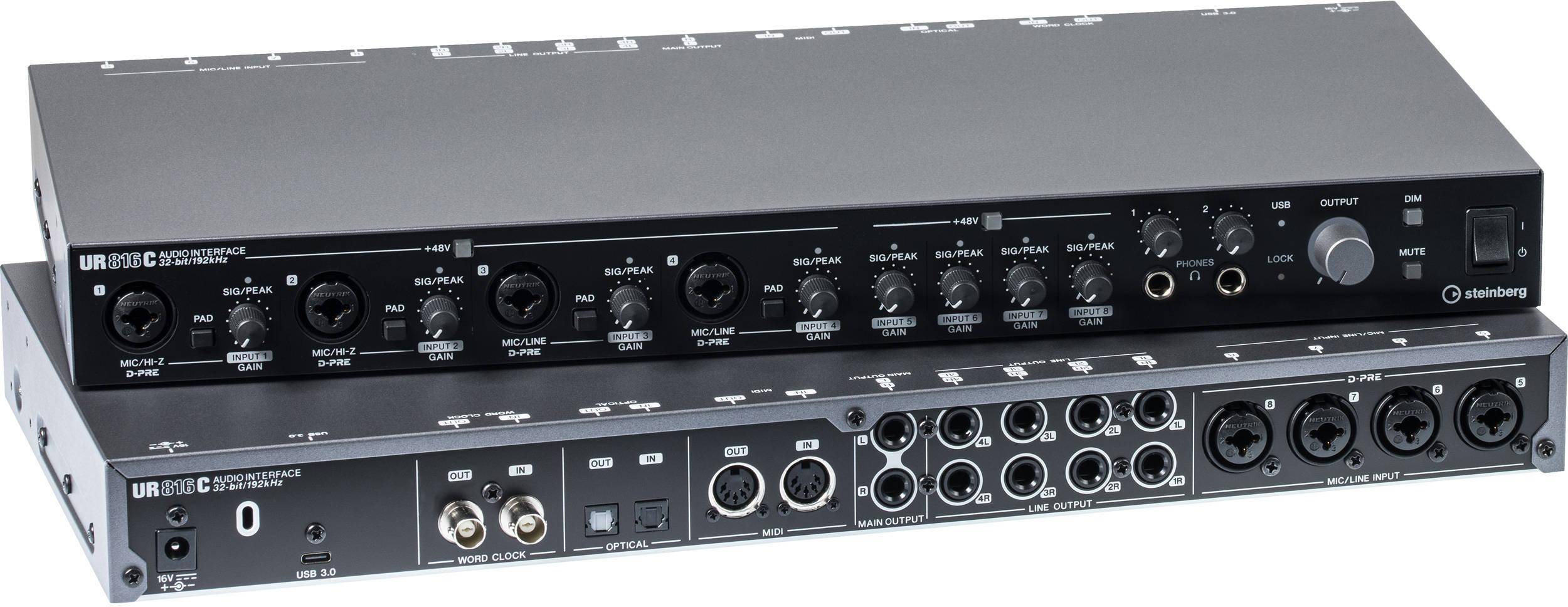

Sales Package | Steinberg UR816C 16x16 USB Type-C Gen 3.1 Audio Interface |
General | |
---|---|
Brand | STEINBERG |
Model | UR816C |
Color | black |
Channels of I/O | Analog: 16 Input / 16 Output |
Maximum Sampling Rate | 192 kHz / 32-Bit |
Number of Microphone Inputs | 8 Preamps |
Gain/Trim Range | Mic Inputs: +6 dB to +60 dB Hi-Z Inputs: +2 dB +56 dB Line Inputs: -6 dB to +60 dB Line Inputs: -10 dB / +44 dB |
Analog Audio I/O | 8x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 8x 1/4" TRS Balanced/Unbalanced Line Input 2x 1/4" TRS Balanced Monitor Output 2x 1/4" TRS Unbalanced Headphone Output |
Phantom Power | 48 V (Selectable on Individual Inputs) |
Digital Audio I/O | 1x TOSLINK Optical ADAT / S/PDIF Input 1x TOSLINK Optical ADAT / S/PDIF Output |
Host Connection Protocol | USB 3.0 / 3.1 Gen 1 |
Sync I/O | 1x BNC Word Clock Input 1x BNC Word Clock Output |
MIDI I/O | 1x DIN 5-Pin Input 1x DIN 5-Pin Output |
Frequency Response | Mic Inputs: 20 Hz to 22 kHz +0/-0.3 dB Monitor Outputs: 20 Hz to 22 kHz +0/-0.2 dB Line Outputs: 20 Hz to 22 kHz +0/-0.2 dB |
Maximum Input Level | Mic Inputs: +24 dBu (Balanced) +8 dBu (Balanced) Line Inputs: +24 dBu (Balanced) Hi-Z Inputs: +9.8 dBV (Unbalanced) |
Maximum Output Level | Monitor/Line Outputs: +18 dBu (Balanced) |
Headphone Output Power | 100 mW per Channel |
Impedance | Outputs: 75 Ohms (Balanced) Mic Inputs: 4 Kilohms (Balanced) Line Inputs: 4 Kilohms (Balanced) Hi-Z Inputs: 1 Megohms (Unbalanced) Headphone Outputs: 40 Ohms (Unbalanced) |
Dynamic Range | Mic Inputs: 106 dBA Monitor Outputs: 112 dBA Line Outputs: 111 dBA |
THD+N | Mic Inputs: 0.002% Line Outputs: 0.0015% Monitor Outputs: 0.002% |
Sample Rates | Up to 192 kHz |
Bit Depths | Up to 32-Bit |
OS Compatibility | Windows 7 / 8.1 / 10 macOS 10.12 or Later iOS 10 or Later |
Processor Requirement | Mac: 2 GHz Intel Core i3 PC: 2 GHz Intel Core i3 PC: 2 GHz AMD |
Minimum Display Resolution | 1280 x 800 |
Power Requirements | AC/DC Power Adapter (Included) |
AC/DC Power Adapter | 16 V (Included) |
Dimension | |
---|---|
Dimension | 446.3 x 225.8 x 45.6 mm |
Weight | 2.7 kg |
Warranty | |
---|---|
Warranty Type | Official Manufacturer Warranty |
Warranty Period | 1 year |
