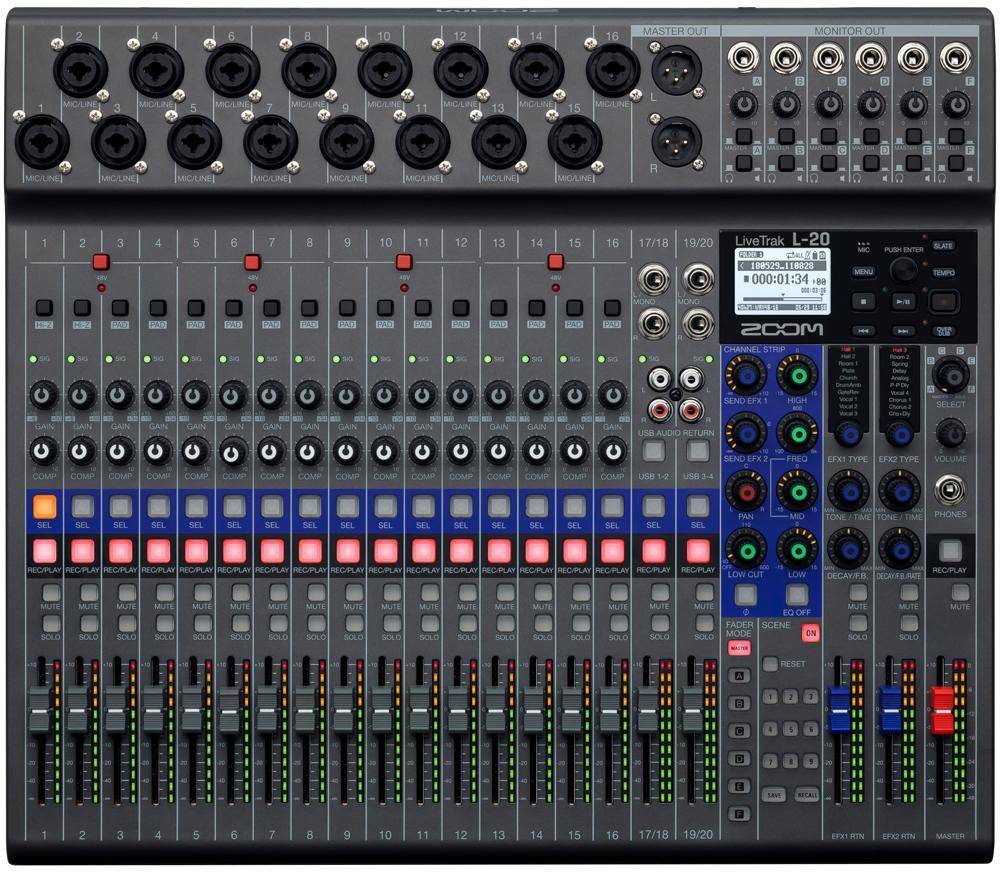

Zoom Livetrak L20 20-input Digital Mixer

BRAND: zoom
|
MODEL: LiveTrak L‑20
IN STOCK | CONDITION: New
WARRANTY: 2 Years Warranty
COLOR
black Zoom Livetrak L20 20-input Digital Mixer color image
Special Deal
3 Left in Stock!
Deal Claimed ( 61%)
special offer image
✕
Offer Price Valid For Limited Time
Price: ₹ 96790.00
Today's Price: ₹ 88900
Price : Rs. 96790.00 8% off
Rs. 88900 (inclusive of all taxes) Free Delivery
BUY NOW ADD TO BAG
return logo Easy
Return
delivery icon Fast Delivery
sheild icon Payment Protection
Check For Delivery ✎
original stamp icon
offer icon

More Offers ⨯

  • 2% Discount On transaction using Debit card
  • * Special Offer: 3% Off on All bank UPI
    * Special Offer: 2% Off on All bank Debit Card
    * No cost EMI Available on All Bank Credit Card

Product Description

  • 20 discrete channels (16 mono plus 2 stereos) with XLR or ¼-inch connectivity
  • 22-track simultaneous recording, 20-track playback
  • 22-in/4-out USB audio interface connectivity
  • Records up to 24bit/96kHz audio to SD card
  • Main outputs plus 6 customizable monitor outputs
  • Dedicated headphone output for the sound engineer
  • Scene saving function, up to 9 scenes saved at a time
  • 20 built-in chorus, delay, and reverb effects with adjustable parameters
IN THE BOX
Sales Package
LiveTrak L-20, AD-19 AC Adapter, USB 2.0 Cable, Quick Guide
General
Brandzoom
ModelLiveTrak L‑20
Year2022
Colorblack
Specifications
Inputs
Mono (MIC/LINE): 16
Stereo (LINE): 2
Output
MASTER OUT: 1
MONITOR OUT: 6
PHONES: 1
INPUTS 1-8
Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain
PAD OFF: +16 – +60dB
PAD ON: − 10 – +34 dB
Hi-Z ON: +6 – +50 dB
Input impedance
XLR: 3 k Ω
TRS: 10 k Ω /1 M Ω (when Hi-Z ON)
Maximum input level
PAD OFF: 0 dBu (at 0 dBFS)
PAD ON: +26 dBu (at 0 dBFS)
Phantom power+48 V
MASTER OUT
Type: XLR jacks (balanced)
Maximum output level:+14.5 dBu
Output impedance: 100 Ω
MONITOR OUT A–F (with balanced output) connected to monitor speakers
Type: TRS phone jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 Ω
MONITOR OUT A– F (with unbalanced output) connected to headphones
Type: Standard stereo phone jacks
Maximum output level: 42 mW + 42 mW at 60 Ω
Output impedance: 100 Ω
OUTPUT PHONES
Type: Standard stereo phone jacks
Maximum output level: 42 mW + 42 mW at 60 Ω
Output impedance: 100 Ω
OUTPUT BUSES
MASTER: 1
MONITOR: 6
SEND EFX: 2
CHANNEL STRIP
COMP:
LOW CUT:
40–600 Hz, 12dB/OCT
EQ:
HIGH: 10 kHz, ± 15 dB, shelving
MID: 100 Hz – 8 kHz, ± 15 dB, peaking
LOW: 100 Hz, ± 15 dB, shelving
Effects 20 types
EFX 1
Hall 1 (Reverb)
Hall 2 (Reverb)
Room 1 (Reverb)
Plate (Reverb)
Church (Reverb)
DrumAmb (Reverb)
GateRev (Reverb)
Vocal 1 (Delay + Hall Reverb)
Vocal 2 (Delay + Mono Reverb)
Vocal 3 (Delay + Plate Reverb)
EFX 2
Hall 3 (Reverb)
Room 2 (Reverb)
Spring (Reverb)
Delay (Delay)
Analog (Delay)
P-P Dly (Delay)
Vocal 4 (Delay + Room Reverb)
Chorus 1 (Stereo Chorus)
Chorus 2 (Mono Chorus)
Cho+Dly (Chorus + Delay)
Recording formatWAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
Recording media
4 GB – 32 GB SDHC cards (Class 10 or higher)
64 GB – 512 GB SDXC cards (Class 10 or higher)
Power consumption24 W maximum
Dimension
Dimension445 mm (W) × 388.4 mm (D) × 82.6 mm (H)
Weight 3.71 kg
